Mirror 309 Stainless Steel Plate Sheet 310 316 6mm 0.25-2.5mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | 309 Stainless Steel | Type | Plate |
---|---|---|---|
Thickness | 0.25-2.5mm | Hardness | 90 HRB |
Shape | Plate | Product Name | 309 Stainless Steel / Plate |
Surface | 2B, BA, Hairline, Mirror, 8K | Elongation | 40% |
Standard | JIS,AISI,ASTM,DIN,EN,GB. | Magnetic Permeability | Nonmagnetic |
Processing Service | Cutting | Technique | Cold Rolled Hot Rolled |
High Light | Mirror 309 Stainless Steel Plate,309 Stainless Steel Plate Sheet,309 Stainless Sheet 6mm |
Mirror 309,309s, 310,316 Stainless Steel Plate 6mm stainless steel plate
Description:
We are manufacturing these Stainless Steel S309 Sheets & Plates with good high quality of raw materials that are specially picked up from the reliable vendor in the market. Our expert team members are highly qualified and have an outstanding skill. They are manufacturing these Stainless Steel 309 Sheets & Plates with their full potential without compromising any quality and quantity standard. They are always visiting the production unit for checking the flow of production, and if any drawback they found, they are immediately taking action against it and producing the best quality of Stainless Steel 309 Sheet & Plates.
Specifications:
Item | Description |
Standard | ASTM A240 / AISI / DIN / JIS / GB |
Grade | 201/202 |
304/304L/304H/309/309S/310S/316L/316Ti/317L/321//S31803/S32205/904L | |
409L/410S/420J1/J2/430 439 441 444 446 | |
Thickness | 0.3-6.0mm for cold sheet scope; 3.0-100mm for hot rolled scope |
Width&Length | 1000mm/1219mm/1500mm/1800mm/2000mm |
Length from cutting, as requirement | |
Surface | Mill surface: 2B/BA/No.1 |
Processing surface: 8k mirror/Hairline/No.4 Satin/Bead blast/Color etched | |
Protection | Transparent film/ Blue fulm/PVC film or laser film |
Package | Standard export package with metal pallet + angle bar protection + |
Processing | Edging/Laser(Plasma/Water Jet) cutting/Leveling/Slitting |
Features of 309 stainless steel:
High temperature resistance: 309 stainless steel can withstand high temperatures up to 1900°F (1038°C), making it suitable for applications involving heat treatment, furnace components, and exhaust systems.
Corrosion resistance: if offers good resistance to oxidation, scaling, and sulfidation at high temperatures, as well as resistance to atmospheric corrosion and certain chemicals.
Strength and toughness: 309 stainless steel exhibits high strength and excellent toughness, which makes it suitable for challenging environment and applications that require durability.
Weldability: It can be readily welded using common welding techniques, such as shielded metal are welding (SMAW), gas tungsten are welding ( GTAW/TIG), and gas metal are welding (GMAW/MIG).
Formability: 309 stainless steel can be easily formed into various shapes and sizes, including sheets, plates, coils, and tubes.
Applications:
Due to its exceptional high-temperature performance, 309 stainless steel sheets are commonly used in applications such as heat exchangers, kilns, radiant tubes, boiler parts, furnace components, and other equipment subjected to elevated temperatures.
1. Heat Exchanges: 309 SS sheets are often used in the manufacturing of heat exchanges due to their exceptional resistance to high-temperature oxidation and thermal cycling. They can withstand the corrosive effects of process fluids and maintain their structural integrity at elevated temperatures.
2. Furnace Parts: The high-temperature resistance of 309 stainless steel makes it suitable for use in furnace components, such as radiant tubes, muffles, and retorts. These parts are exposed to extreme heat, and 309 SS sheets can withstand the thermal stress and corrosive atmosphere encountered in furnaces.
3. Aerospace Application: 309 stainless steel sheets are utilized in the aerospace industry for applications that involve high-temperature environments, such as aircraft engine components, exhaust systems, and combustion chambers. The alloy’s resistance to oxidation and thermal fatigue makes it suitable for these demanding conditions.
4. Petrochemical industry: 309 SS sheets find application in the petrochemical industry where they are used for manufacturing equipment exposed to high-temperature and corrosive environment. Examples include heat exchanges, reactors, and piping systems that handle corrosive chemicals at elevated temperatures.
5. Power Generation: Power plants, including col-fired, gas-fired, and nuclear power plants, utilize 309 stainless steel sheets in various components. These include boiler tubes, super heaters, steam lines, and other parts that are exposed to high temperatures, steam, and corrosive environments.
6. Chemical Processing: 309 SS sheets are employed in the chemical processing industry for manufacturing vessels, tanks, and pipelines that handle corrosive chemicals at high temperatures. The alloy’s resistance to oxidation and acid attack makes it suitable for these applications.
7. Automotive Exhaust System: Due to its heat resistance and resisatnace to corrosive gases, 309 stainless steel sheets are used in automotive exhaust systems. These sheets can withstand the high temperatures and corrosive byproducts of combustion, ensuring durability and longevity of the exhaust components.

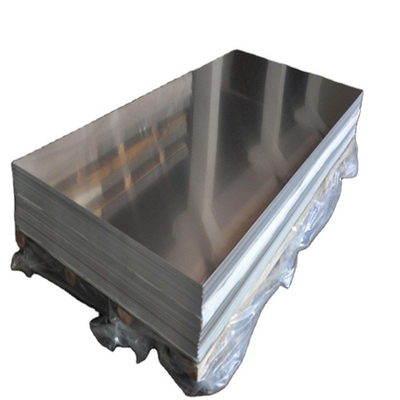

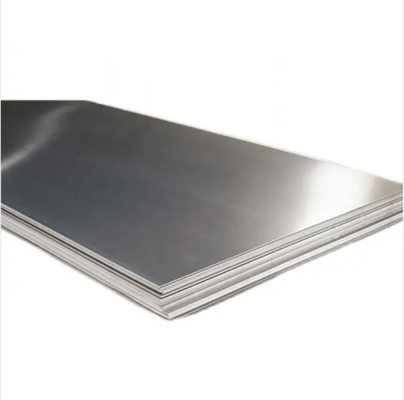

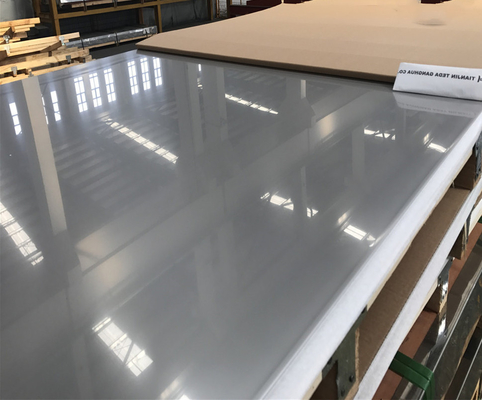

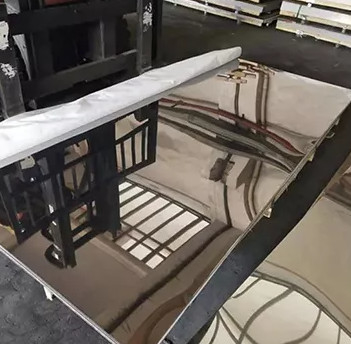

Product Image:
Product Packing
CERTIFICATES
FAQ
01 WHAT KIND OF WORK DOES YOUR COMPANY DO?
(1) : Our company is a professional manufacture
(2) : Wemainly producesstainlesssteelplate/pipe/coil
(3) : round barsas well asaluminumplate/pipe/coil/bar
02 WHAT ARE THE ADVANTAGES OF YOUR COMPANY?
(1) : Prime quality and reasonable price
(2) : Wide excellent experiences with after-sale service
(3) : Every process will be checked by responsible QC which insures every products quality
(4) : Professional packing teams which keepevery packing safel
(5) : Trialorder can be done in one week
(6) : Samples can be provided as yourrequirements
03 WHAT IS YOUR TERMS OF PAYMENT?
(1) : Payment<=1000USD 100%in advance Payment>=1000USD,30% T/Tin advance,balance based on BLcopy or LC at sight
(2) : If you have another question please contact us as below
04 WHAT ABOUT YOUR PRICE?
(1) : Our price is very competitive because we are a factor Pls feel free to contact us if you are interested in our products
05 HOW LONG IS YOUR DELIVERY TIME?
(1) : Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery timeis within15 days after we received your deposit.
